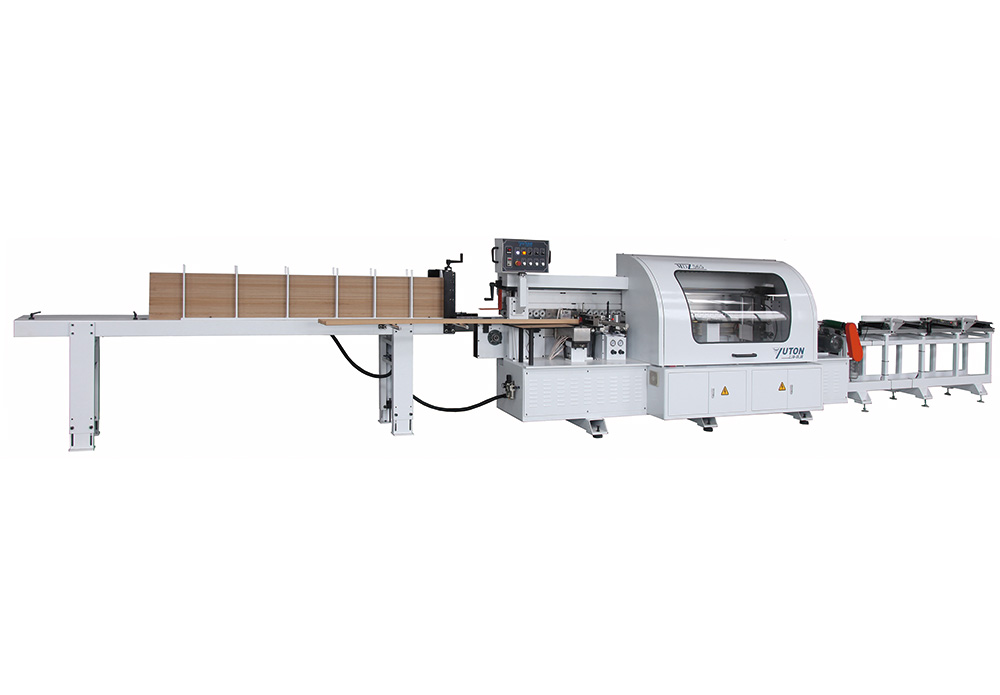

Function:It is used for splicing,edge trimming,corner rounding & groove milling on L-shape architrave of door frame.
Equipped with material storage, automatic feed in & feed out.
| Panel thickness |
12-25mm |
| Panel width |
≥50mm (max 100mm when double R) |
| Panel length |
900-2400mm |
| Strip width |
15-50mm |
| Strip thickness |
3-5mm optional 10mm |
| Min distance between panels |
800mm |
| Feed speed |
24m/min |
| Overall dimensions |
11500*1350*1650mm |
| Weight |
2300kg |
|
